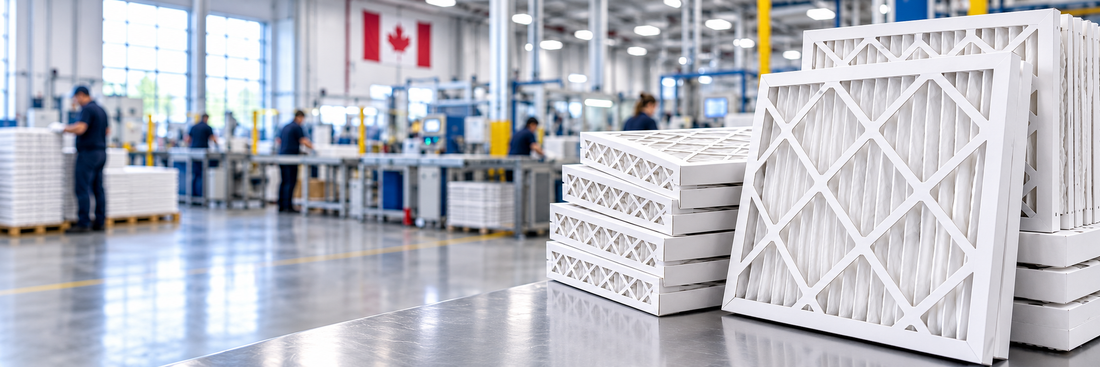

Wide view of the Canadian Air Filters production floor

Dust Collector & Cartridge Filters for Industrial Air

8 min read · Filter Types

Dust collector cartridge filters are cylindrical or oval pleated filter elements installed in an industrial dust collector to capture process dust, fume and powder from extracted air, usually with automatic pulse-jet cleaning so they can run for months between replacements. Baghouse bags do the same job with long fabric tubes instead of pleats.

These filters are not HVAC filters. They sit on process equipment – welding tables, saws, grinders, plasma cutters, mixers and conveyors – and deal with dust loads many times heavier than anything a building air handler sees. Canadian Air Filters does not stock cartridge or baghouse elements as catalogue items, but our bulk team can help source elements to a specification, and the HVAC side of the plant is covered in other Air Quality Wiki guides.

Quick facts

Typical efficiency High – commonly MERV 11–16 equivalent for cartridges; higher with nanofibre or membrane media
Common forms Round and oval pleated cartridges (often 2–3 ft long), baghouse bags and envelopes
Typical applications Welding and plasma fume, woodworking, metal grinding, powder handling, pharmaceuticals, food ingredients
Media Cellulose, cellulose/synthetic blend, spunbond polyester, nanofibre-coated, PTFE membrane, felts for bags
Cleaning Pulse-jet compressed air, reverse air or shaker (older baghouses)
Replacement interval Months to years, driven by differential pressure and emissions
Reusable? Self-cleaned in place; elements are replaced when cleaning no longer recovers pressure drop
Best paired with Proper hoods and ducting, spark arrestance where needed, and a safety-reviewed collector design

In this article:

How dust collectors and cartridge filters work

A dust collector draws contaminated air from a hood or pickup point through ductwork into a housing. Heavy particles often drop out first in an inlet baffle or cyclone. The remaining dust meets the filter elements, where it builds up on the outer surface as a dust cake. Clean air passes through the media to the clean-air plenum and on to the fan and exhaust or return.

Capture relies on the same mechanisms as other fibrous filters – impaction, interception and diffusion – but with an important twist: once the dust cake forms, the cake itself becomes a very efficient filter layer. Good collectors are designed to keep a thin, stable cake in place and remove the excess, rather than scrubbing the media perfectly clean.

That excess is removed by pulse-jet cleaning. A controller fires a short, sharp burst of compressed air backward through each element, flexing the media and knocking the cake into a hopper. Pulsing can run on a timer, on demand when differential pressure reaches a set point, or both. Off-line cleaning (pulsing when airflow is stopped) is often more effective for sticky or fine dust.

Cartridges versus baghouse bags

Feature Pleated cartridge Baghouse bag
Media area in a given housing High – pleating packs a lot of media into a compact element Lower per element, but large baghouses use many bags
Best for Fine, dry, non-fibrous dust; welding and thermal cutting fume; light-to-moderate loads Heavy loads, coarse or abrasive dust, high temperatures, fibrous material
Footprint Compact Larger housing and headroom for bag removal
Change-out Typically quick; some designs change from the clean or dirty side More elements, often handled from the clean-air side
Limitations Sticky, moist or fibrous dust can bridge between pleats Lower efficiency on very fine fume unless membrane-coated

Pleat spacing matters. Open-pleat or wide-spaced cartridges release cake more easily and suit heavier or slightly fibrous dust, while tightly pleated elements maximise area for fine, light fume.

Filter media types

  • Cellulose – economical, good for light, dry dust in low-humidity settings. Does not tolerate moisture well.
  • Cellulose/synthetic blend – adds strength and some moisture tolerance; a common general-purpose choice.
  • Spunbond polyester – durable, washable in some cases, tolerates humidity and releases cake well; widely used for powders and food or pharmaceutical dust.
  • Nanofibre-coated media – a very fine fibre layer on the surface keeps dust from embedding in the substrate (surface loading), improving efficiency on fine fume and making pulse cleaning more effective.
  • PTFE membrane – laminated membrane offers excellent release and very high fine-particle efficiency; used for sticky, very fine or hard-to-release dust.
  • Treated media – flame-retardant, oleophobic (oil-repellent), anti-static or conductive treatments for specific hazards.
  • Felts – needle-punched polyester, polypropylene, aramid and other fibres for baghouse bags; choice depends on temperature and chemistry.

Media selection is driven by particle size, moisture, temperature, oil content, abrasiveness and whether the dust is combustible. A dust sample analysis and the collector manufacturer's recommendations are the right starting point.

Efficiency, air-to-cloth ratio and pressure drop

Cartridge manufacturers may report efficiency as a MERV under ASHRAE 52.2 or as a percentage capture at a stated particle size. Nanofibre and membrane elements generally reach the upper MERV range and are often specified where clean air is returned to the building rather than exhausted outdoors.

The key design figure is the air-to-cloth ratio (also called filtration velocity): the airflow divided by total filter media area. Too high a ratio packs dust into the media, raises pressure drop and shortens element life; too low wastes capital. Appropriate ratios vary widely with dust type, so they should come from the collector designer.

Watch the differential pressure gauge across the filters. A stable reading after pulsing means the cleaning system is keeping up. A steadily climbing baseline indicates blinding, moisture, oil or an undersized collector. A sudden drop can mean a torn element or a leaking seal, which shows up as dust on the clean side or at the exhaust.

Mechanic shop with visible exhaust fumes from vehicles and equipment

Workplace safety and combustible dust

Industrial dust collection is a health and safety system, not just a housekeeping tool. Welding fume, crystalline silica, hardwood dust and many metal dusts are regulated occupational exposures in Canadian workplaces, and employers are responsible for controlling them under provincial occupational health and safety rules.

  • Combustible dust – wood, flour, sugar, many plastics and metals such as aluminum can explode when suspended in air. Collectors handling combustible dust need a hazard analysis and protective measures such as explosion venting, isolation, spark detection and correct collector location. NFPA combustible-dust standards are widely used as references; your insurer and the authority having jurisdiction will set the requirements.
  • Sparks – grinding and thermal cutting can carry sparks into the collector. Spark arrestors, drop-out boxes and flame-retardant media reduce the risk.
  • Recirculation – returning filtered air to the workplace saves heating energy in a Canadian winter, but it requires high-efficiency filtration, monitoring and a suitable dust type. Many plants add a secondary safety filter (often HEPA) downstream.
  • Change-out – wear appropriate respiratory protection and bag used elements for disposal, especially with toxic or regulated dusts.

Always involve a qualified engineer or collector manufacturer when designing or modifying a system.

Maintenance and replacement

  • Record differential pressure daily or connect it to the building automation system.
  • Check compressed air: it must be dry and oil-free at the specified pressure, or the pulses will be weak and may wet the media.
  • Empty hoppers and drums before they back up into the filter chamber.
  • Inspect diaphragm valves and solenoids; one failed valve leaves a row of elements uncleaned.
  • Replace elements as a full set when the post-pulse pressure drop no longer recovers, so new and old elements do not share airflow unevenly.
  • Check gaskets and sealing surfaces at every change – leaks around an element defeat even the best media.

Element life ranges from a few months in heavy, sticky applications to several years in light-duty collectors.

How cartridge filters relate to HVAC filtration

A plant usually needs both systems. Source capture with a dust collector handles process contamination; the building's air handlers then use pocket filters, rigid cell filters or V-bank filters for general ventilation, often behind wire panel pre-filters or media pads. Relying on HVAC filters to clean up process dust overloads them quickly and leaves workers exposed at the source.

Need replacement elements? Send our bulk orders team the collector make and model, the element part number or dimensions (outside and inside diameter, length, end-cap style and gasket), the media type and quantities. We will advise on sourcing or a suitable alternative.

Commercial plaza with rooftop HVAC units beside a construction site raising dust

Pros and cons

Advantages Limitations
✓ High efficiency on fine dust and fume ✗ Requires engineered collector design
✓ Self-cleaning extends element life ✗ Needs clean, dry compressed air
✓ Compact for the media area provided ✗ Sticky or moist dust can blind media
✓ Wide choice of specialty media ✗ Combustible dust adds explosion risk
✓ Can enable recirculation and heating savings ✗ Elements are costly compared with HVAC filters
✓ Captures contamination at the source ✗ Not a substitute for building ventilation filters

Shop at Canadian Air Filters

Bulk orders · Commercial filters · V-bank filters · Custom filters

Made in Brampton, Ontario and shipped across Canada. Need a size you can't find? Request a custom filter or ask about bulk pricing.

Frequently asked questions

Does Canadian Air Filters sell dust collector cartridges?

They are not catalogue items in our store. Our bulk orders team can help source cartridges or bags to your specification if you provide the collector make, element dimensions and media type.

What is the difference between a cartridge filter and a baghouse bag?

A cartridge packs pleated media into a compact element with a lot of surface area, ideal for fine, dry dust and fume. Baghouse bags are fabric tubes better suited to heavy, abrasive, fibrous or high-temperature dust.

How often should dust collector filters be replaced?

Replace them when pulse cleaning can no longer bring differential pressure back to a stable baseline, or if leaks or emissions appear. Depending on the dust, that can be months or several years.

Which cartridge media is best for welding fume?

Welding and thermal cutting fume is very fine, so nanofibre-coated or membrane media are commonly specified, often with flame-retardant treatment and spark arrestance upstream. Confirm the choice with the collector manufacturer.

Can filtered air from a dust collector be returned to the building?

Sometimes, and it can save heating energy in winter, but it depends on the dust's hazard and requires high-efficiency media, monitoring and usually a secondary safety filter. Regulators and your safety advisor must agree.

Can I use HVAC filters instead of a dust collector?

No. HVAC filters such as pleated filters are designed for low dust loads in general ventilation. Process dust overwhelms them quickly and leaves workers exposed at the source.
