Pleated Air Filters: The Complete Guide

8 min read · Filter Types

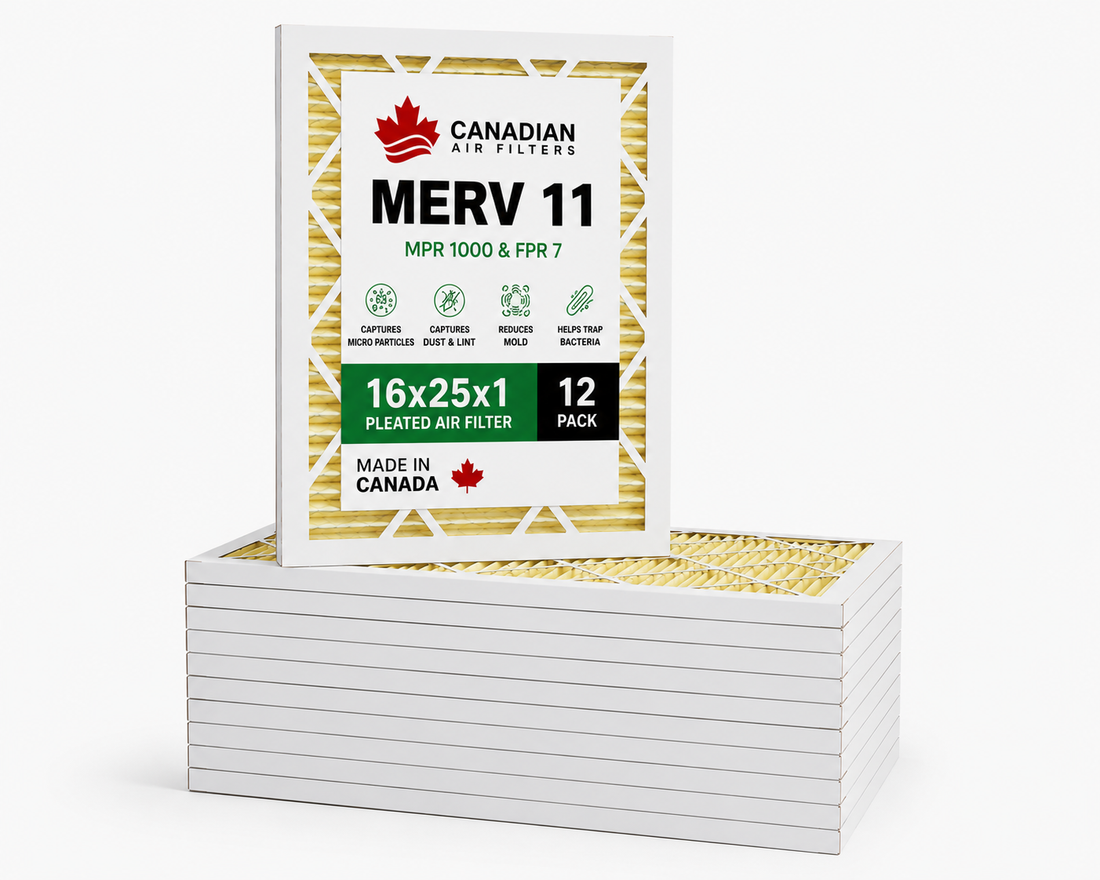

A pleated air filter is a disposable HVAC filter in which a sheet of filter media is folded into a series of pleats and held in a rigid frame, packing far more filtering surface into the same slot than a flat panel. In homes and light commercial systems they usually come in 1-inch and 2-inch depths and are rated MERV 5 to MERV 13 under ASHRAE 52.2, with MERV 8, 11 and 13 the most common choices.

Pleated filters are the workhorse of residential and light commercial air filtration because they strike a practical balance: much better particle capture than fibreglass, a manageable change interval, and airflow resistance that most furnaces, air handlers and rooftop units are designed to handle. The details – media type, pleat count, frame and true size – decide how well a particular filter performs.

In this article:

• How pleated filters work
• Media, pleats and frames
• MERV 8 vs MERV 11 vs MERV 13
• 1-inch vs 2-inch pleated filters
• Pressure drop and airflow
• Applications in Canadian homes and buildings
• Sizing: nominal vs actual
• Maintenance, cost of ownership and buying checklist
• Pros and cons
• Frequently asked questions

How pleated filters work

Pleating multiplies media area. A 16x25x1 slot has a face of under three square feet, but a pleated filter in that slot can hold several times that much media. Spreading the airflow over more media lowers the velocity through each fibre layer, which reduces resistance and gives every capture mechanism more time to work:

• Inertial impaction removes larger particles such as pollen and lint that cannot follow the air around a fibre.
• Interception removes mid-size particles that pass close enough to brush a fibre.
• Diffusion removes the smallest particles, which move erratically and wander into fibres.
• Electrostatic attraction, in charged synthetic media, pulls fine particles onto fibres and boosts efficiency without making the media denser.

The weakest point for most filters is roughly 0.1–0.5 µm, where none of the mechanisms is especially strong. That is why ASHRAE 52.2 measures efficiency across three size bands rather than at a single particle size.

Media, pleats and frames

Synthetic media – polyester or polypropylene fibres, often given an electrostatic charge during manufacture – is the most common choice for MERV 8 and above. It resists moisture, does not support mould growth as readily as natural fibres, and holds a stable shape. Cotton-polyester blend media is a traditional MERV 8 material, slightly stiffer and less sensitive to charge loss, though it can absorb moisture in humid conditions.

Pleat count is usually expressed as pleats per linear foot. More pleats mean more media, but only up to a point: pleats packed too tightly pinch together and stop carrying air. Good design pairs the right pleat height and spacing with a support such as a wire backing or a bonded grid so pleats keep their shape under load.

Frames are typically high-wet-strength beverage board, sometimes with a die-cut diagonal support on both faces. A well-glued frame matters: if media pulls away from the frame, air bypasses the media entirely. Canadian Air Filters manufactures its pleated filters in Brampton under an ISO 9001 quality system.

MERV 8 vs MERV 11 vs MERV 13

MERV ratings come from ASHRAE 52.2, which measures how much of three particle size ranges a filter captures as it loads with dust. Use the rating that matches the household rather than defaulting to the highest number.

Rating	Fine 0.3–1 µm	Medium 1–3 µm	Large 3–10 µm	Good fit for
MERV 8	–	20%+	70%+	Most homes; standard commercial spaces
MERV 11	20%+	65%+	85%+	Pets, mild allergies, urban dust
MERV 13	50%+	85%+	90%+	Wildfire smoke, asthma, schools, LTC homes

Minimum composite efficiencies per ASHRAE 52.2. ISO 16890, common in Europe, groups filters into ePM1, ePM2.5 and ePM10 classes instead; a MERV 13 is often loosely compared with an ePM1 class of around 50%, but the two tests are not directly interchangeable. Retail scales such as MPR and FPR are not standards – see filter ratings made simple.

1-inch vs 2-inch pleated filters

Depth matters as much as MERV. A 2-inch filter has taller pleats and roughly double the media area of a 1-inch filter of the same face size, so at the same rating it usually starts with lower resistance and holds more dust before it needs changing.

	1-inch pleated	2-inch pleated
Where found	Most furnace slots, return grilles	Many rooftop units, air handlers, some furnace racks
Media area	Baseline	About twice as much
Typical change interval	1–3 months	2–4 months
Best for MERV 13?	Works in many systems; watch airflow	Usually the easier fit

Only use the depth your filter rack is built for – a 2-inch filter will not fit a 1-inch slot. If your system has room, a 4-inch or 5-inch media cabinet extends this advantage further.

Pressure drop and airflow

Every filter adds resistance, measured as pressure drop in inches of water column. Higher-MERV media is usually denser, but pleat design, depth and charge can offset much of that. In practice, a clean MERV 13 can restrict less than a loaded MERV 8, so change schedules matter more than small differences in rating.

Watch for signs of too much restriction: noticeably weaker airflow at registers, whistling at the filter slot, rooms that heat or cool unevenly, or an air conditioner coil that frosts. If you see these after stepping up in MERV, change the filter sooner, move to a 2-inch or deeper filter, or have a technician check static pressure. Our HVAC energy efficiency guide covers this in more depth.

Applications in Canadian homes and buildings

• Homes: during the heating season the furnace runs for long stretches with windows shut, so a pleated filter is cleaning recirculated air for months. MERV 8 suits most homes; MERV 11 helps with pets and allergies.
• Wildfire season: smoke from western and northern fires regularly reaches Ontario, Quebec and the Prairies. MERV 13 captures a meaningful share of smoke particles; see the wildfire smoke survival guide.
• Condos and high-rises: fan coils and heat pumps in suites often use 1-inch pleated filters in unusual sizes – check our condo IAQ guide.
• Offices, retail and schools: 2-inch MERV 8 to MERV 13 pleated filters are common in rooftop units, often changed quarterly by contract.
• Long-term care and clinics: pleated filters frequently serve as pre-filters ahead of higher-efficiency bag or rigid filters.

Sizing: nominal vs actual

Filters are sold by nominal size, a rounded label, while the actual size is slightly smaller so the filter slides into the rack. A 16x25x1 typically measures about 15.5 x 24.5 x 0.75 inches; a 20x20x2 about 19.5 x 19.5 x 1.75 inches. Read the actual dimensions printed on the old filter frame, or measure the slot, and match length, width and depth.

• Point the airflow arrow toward the blower, away from the return duct.
• Close gaps around the frame with the slot cover or foam gasket – unfiltered bypass air defeats a high MERV.
• For odd sizes common in older homes and fan coils, order special sizes or a custom filter rather than forcing a near-fit.

Maintenance, cost of ownership and buying checklist

Check a 1-inch filter monthly and a 2-inch filter every other month, and replace when the media looks grey across the face or at the interval on the label – whichever comes first. Homes with pets, renovations or a running wildfire season will need more frequent changes. See our filter changing guide.

On cost, a pleated filter is a small yearly expense compared with blower energy and coil cleaning. Buying in multi-packs, matching MERV to real needs and keeping to a schedule usually gives the best value. Before you buy, confirm:

1. Exact nominal and actual size, including depth.
2. The MERV rating that fits your household or building.
3. That your system can handle the resistance, especially for MERV 13 in 1-inch.
4. A sturdy frame with media sealed to the edges.
5. A realistic change schedule – set a reminder.

Pros and cons

Advantages	Limitations
✓ Much better particle capture than fibreglass	✗ Disposable – recurring purchase
✓ Standard sizes fit most furnaces and air handlers	✗ Higher MERV adds resistance in restrictive systems
✓ Available from MERV 8 to MERV 13	✗ 1-inch versions load faster than deep media
✓ Longer service life than flat panels	✗ Charged media can lose some efficiency as it loads
✓ Affordable and easy to change	✗ Does not remove odours or gases on its own
✓ 2-inch versions balance efficiency and airflow well

Frequently asked questions

What MERV pleated filter should I use at home?

MERV 8 is a sound default for most homes. Choose MERV 11 for pets or allergies and MERV 13 for wildfire smoke, asthma or other heightened concerns, provided your system handles the airflow. Our MERV rating guide explains each level.

How often should I change a pleated filter?

Typically every one to three months for 1-inch filters and two to four months for 2-inch filters. Check monthly during peak heating and cooling, and change sooner if the media looks grey or airflow drops.

Is synthetic or cotton-poly media better?

Both work well at MERV 8. Synthetic media handles humidity better and is the usual choice for MERV 11 and 13 because it can be electrostatically charged for high fine-particle capture without excessive resistance.

Does a higher pleat count always mean a better filter?

Not always. More pleats add media area, but pleats packed too tightly pinch together and stop carrying air. Pleat height, spacing, support and media quality together determine performance.

Why is my filter smaller than the size on the label?

The label shows the nominal size; the actual size is slightly smaller, usually by about half an inch on length and width and a quarter inch on depth, so it slides into the rack. Always match the actual dimensions printed on the frame.

Can I use a pleated filter for wildfire smoke?

A MERV 13 pleated filter captures a meaningful share of smoke particles when the system runs and the filter is well sealed. For odour and gases, consider a carbon pleated filter, and see our wildfire smoke guide.
