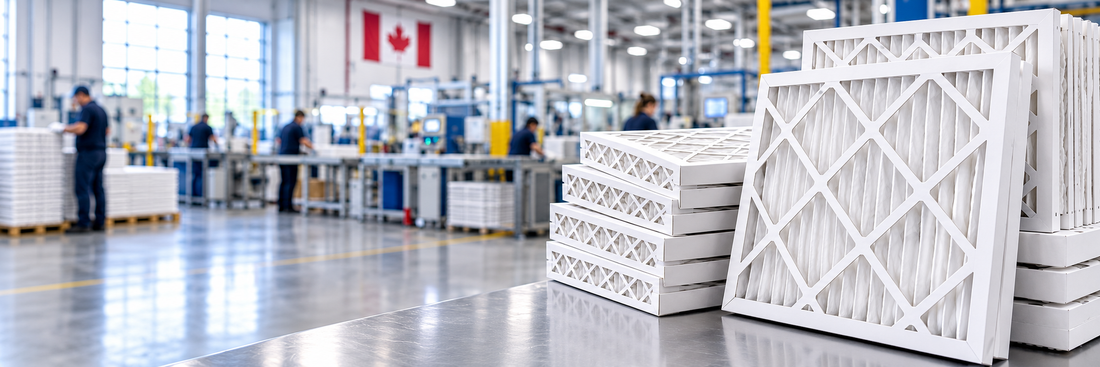

Canadian Air Filters production floor

Rigid Cell & Box Filters: High-Efficiency Commercial Filtration

8 min read · Filter Types

A rigid cell filter, often called a box filter, is a self-supporting high-efficiency air filter in which pleated media packs are permanently sealed inside a deep frame, so the filter keeps its shape regardless of airflow. Unlike a bag filter, it has nothing that inflates or hangs; the media is held by separators or beads, and the whole cell slides into a track or holding frame as one solid unit.

Rigid cells are a common final filter in commercial and institutional air handlers where airflow is high, fans cycle frequently, or efficiency must stay dependable over a long service life. Canadian hospitals, long-term care homes, laboratories, data rooms and modern office towers use them extensively, typically at MERV 11 to MERV 15 under ASHRAE 52.2 and often behind a 2-inch pleated pre-filter.

Quick facts

Typical efficiency MERV 11 to MERV 15 (ASHRAE 52.2); often ePM1 classes under ISO 16890
Common depths 6-inch and 12-inch nominal; face sizes such as 24x24, 12x24 and 20x24
Frame styles Box style (no header) or single-header style with a 3/4 to 1 inch flange
Typical applications Hospitals, LTC homes, labs, schools, office towers, pharmaceutical and food plants
Media Wet-laid fibreglass or synthetic, in deep pleats with aluminum or glue-bead separators
Typical replacement interval Commonly 12 months or longer, governed by final pressure drop
Relative cost Higher per unit than bags; competitive over the full service life
Best paired with 2-inch pleated MERV 8 pre-filter

In this article:

How rigid cell filters work

Inside the frame, a rigid cell contains one or more deep media packs folded into closely spaced pleats. Air enters the face, travels into each pleat channel and passes through the media. The pleat geometry is fixed, so the media area seen by the air does not change whether the fan is running at full speed or ramping up from a stop.

Particles are removed by the standard fibrous-filter mechanisms. Coarse dust is captured by inertial impaction, mid-size particles by interception as they graze fibres, and sub-micron particles such as smoke and some bacteria-sized material by diffusion, which is most effective at the low media velocities that deep pleating creates. Synthetic media may add electrostatic attraction; glass media relies mainly on its very fine fibre structure, which keeps efficiency steady as the filter loads.

Because the cell is self-supporting, it does not depend on a minimum airflow to stay open. That is the key practical difference from bag filters and the reason rigid cells are preferred in variable-air-volume (VAV) systems.

Box style vs header style

Rigid filters come in two broad frame formats. Choosing the right one depends on how the existing filter bank holds its filters.

Format Description Where it fits
Box style Full-depth enclosed frame, same dimensions front to back, no flange Side-access housings and tracks that hold the whole filter body; 6-inch or 12-inch deep
Header style Single header flange on the entering face, media box behind it Front-loading holding frames with clips, and side-access tracks designed for bags

A header-style rigid cell is often the simplest way to upgrade from bags, because it uses the same 1-inch track as the bag header it replaces. Box-style cells need a housing that supports the full depth of the frame.

Construction and materials

  • Frames: galvanized steel is traditional; high-impact plastic frames resist corrosion and are lighter to carry up to a rooftop. Some critical-environment designs use stainless steel.
  • Media: wet-laid microglass paper is widely used for MERV 14 and 15 because its efficiency does not rely on charge. Synthetic media is lighter, more moisture tolerant and common at MERV 11 to 13.
  • Separators: older designs use corrugated aluminum separators between deep pleats; newer mini-pleat cells use hot-melt glue beads, which allow more pleats per inch and more media in the same depth.
  • Sealant: polyurethane or similar sealant bonds the media pack to the frame on all four sides so air cannot slip around the media.
  • Gaskets: optional face gaskets improve sealing against the holding frame.

Commercial plaza with rooftop HVAC units beside a construction site

Efficiency ratings and standards

In Canada and the United States, rigid cells are specified by MERV under ASHRAE 52.2. Engineers may also see ISO 16890 classifications on European-made or globally tested products. Rigid filters are not HEPA filters; true HEPA performance is defined separately by EN 1822 (H13 and H14) or the US DOE/IEST 99.97% at 0.3 micron benchmark. See our HEPA guide for that category.

MERV Typical use for rigid cells
11 to 12 Offices, retail and general commercial final filtration
13 Schools, LTC homes, multi-residential buildings, wildfire smoke resilience
14 Hospital general areas, labs, clean manufacturing
15 Critical healthcare support spaces, pre-filter ahead of HEPA

When reading a specification, check the rated airflow at which the MERV was achieved. A filter rated at 2,000 CFM will not perform the same if pushed well beyond that.

High velocity, pressure drop and energy

Rigid cells tolerate face velocities that would make bags flutter, which is why they are favoured in compact, high-velocity air handlers. They also handle turbulence near fans and frequent start-stop cycles without media damage.

A 12-inch cell has much more media than a 6-inch cell of the same face size, so it starts at a lower resistance and takes longer to reach its final pressure drop. Where space allows, the deeper filter usually costs less to run. Practical points:

  • Measure resistance with a differential pressure gauge across each bank and change at the manufacturer's recommended final value.
  • Do not run filters to their maximum structural rating; energy use climbs as resistance rises.
  • On VAV systems, remember that resistance changes with airflow; compare readings at similar fan speeds.

For more on fan energy and filter selection, see the HVAC energy efficiency guide.

Applications: healthcare, LTC, labs and more

  • Hospitals and clinics: MERV 14 to 15 rigid cells are a common final stage in general patient areas, and as a pre-filter protecting HEPA filters in critical rooms. Requirements are set by the facility's engineers and applicable health-care ventilation standards.
  • Long-term care homes: residents are often vulnerable to fine particles, and many Ontario LTC operators specify MERV 13 or higher. Rigid cells give steady performance across long change intervals.
  • Laboratories and pharmaceutical plants: high air-change rates and strict cleanliness favour self-supporting, well-sealed filters.
  • Schools and office towers: where the AHU cannot fit long bags, a 12-inch rigid cell reaches MERV 13 in less depth.
  • Data rooms: clean air protects electronics; rigid cells shed little fibre and hold up to constant airflow.

During wildfire smoke events, MERV 13 to 15 rigid cells help reduce indoor fine particles in buildings that recirculate air. Expect faster loading and check pressure drop more often.

Sizing, installation and maintenance

  • Confirm actual dimensions: nominal 24x24x12 cells are usually a little undersized on the face. Measure the old filter or check the housing schedule.
  • Match the frame style: header style for bag-type tracks and front-loading frames; box style for housings that support the full depth.
  • Respect airflow direction: the frame label shows an arrow; the header goes on the entering-air side.
  • Seal every gap: use gaskets, latches and blank-offs. A high-MERV filter is only as good as the seal around it.
  • Replace pre-filters often: changing the 2-inch pre-filter every 1 to 3 months can extend rigid cell life significantly.
  • Handle by the frame: never push on the media face; pleats can be crushed and leak.

Most facilities replace rigid cells once a year or longer, but the pressure gauge, not the calendar, should make the final call.

Rigid cells vs bag filters and V-banks

Factor Rigid cell / box Pocket (bag) V-bank
Shape under no airflow Holds shape Pockets sag Holds shape
Depth needed 6 or 12 inches Up to about 36 inches About 12 inches
Media area for depth Good Good with deep bags Highest
Unit cost Medium Lower Higher
Best for High velocity, VAV, critical spaces Deep plenums, steady airflow, budgets Lowest resistance at high efficiency

Buying checklist

  • Box style or header style, and the actual face and depth dimensions.
  • Required MERV, rated airflow and initial resistance at that airflow.
  • Media type: glass for stable high efficiency, synthetic for moisture tolerance and lower weight.
  • Frame material suited to the environment (steel, plastic or stainless).
  • Gasket requirement and compatible holding frame or clips.
  • Matching 2-inch pre-filters and a quantity plan for bulk ordering.

Pros and cons

Advantages Limitations
✓ Self-supporting; no sagging or fluttering ✗ Higher purchase price than bags
✓ Handles high velocity and VAV systems ✗ Bulkier to store, ship and dispose of
✓ Steady efficiency over a long service life ✗ Heavier, especially steel-framed glass cells
✓ Available up to MERV 15 ✗ Media can be crushed if handled by the face
✓ Fits shallower housings than long bags ✗ Must match frame style to the housing
✓ Good seal options for critical areas

Shop at Canadian Air Filters

Rigid cell box style · Rigid cell header style · Commercial filters · 2-inch pre-filters

Made in Brampton, Ontario and shipped across Canada. Need a size you can't find? Request a custom filter or ask about bulk pricing.

Frequently asked questions

What is the difference between a box filter and a rigid cell filter?

The terms are largely interchangeable. Both describe a self-supporting deep-pleated filter in an enclosed frame. Suppliers sometimes use box style to mean the version without a header flange.

Should I choose a 6-inch or 12-inch rigid cell?

If the housing allows it, a 12-inch cell usually has much more media, lower resistance and a longer life. A 6-inch cell is used where depth is limited or as a compact final filter in smaller units.

Can a rigid cell replace my bag filters?

Often yes. A header-style rigid cell is designed to slide into the same 1-inch tracks used by bag filters. Confirm the depth available behind the track and the face dimensions before switching.

Are rigid cell filters HEPA filters?

No. Rigid cells are rated by MERV, typically 11 to 15. HEPA filters meet separate standards such as EN 1822 H13 or H14. Rigid cells are frequently used upstream to protect HEPA filters. See HEPA filters explained.

How long do rigid cell filters last?

Many facilities change them about once a year, and some go longer with good pre-filtration. The correct trigger is the manufacturer's final pressure drop, measured with a gauge across the bank.

What MERV should a long-term care home use?

Many LTC operators in Canada now aim for MERV 13 or higher on their air handlers, subject to fan capacity. A mechanical engineer or HVAC contractor should confirm the system can handle the added resistance. See our guide to indoor air for kids and seniors.
