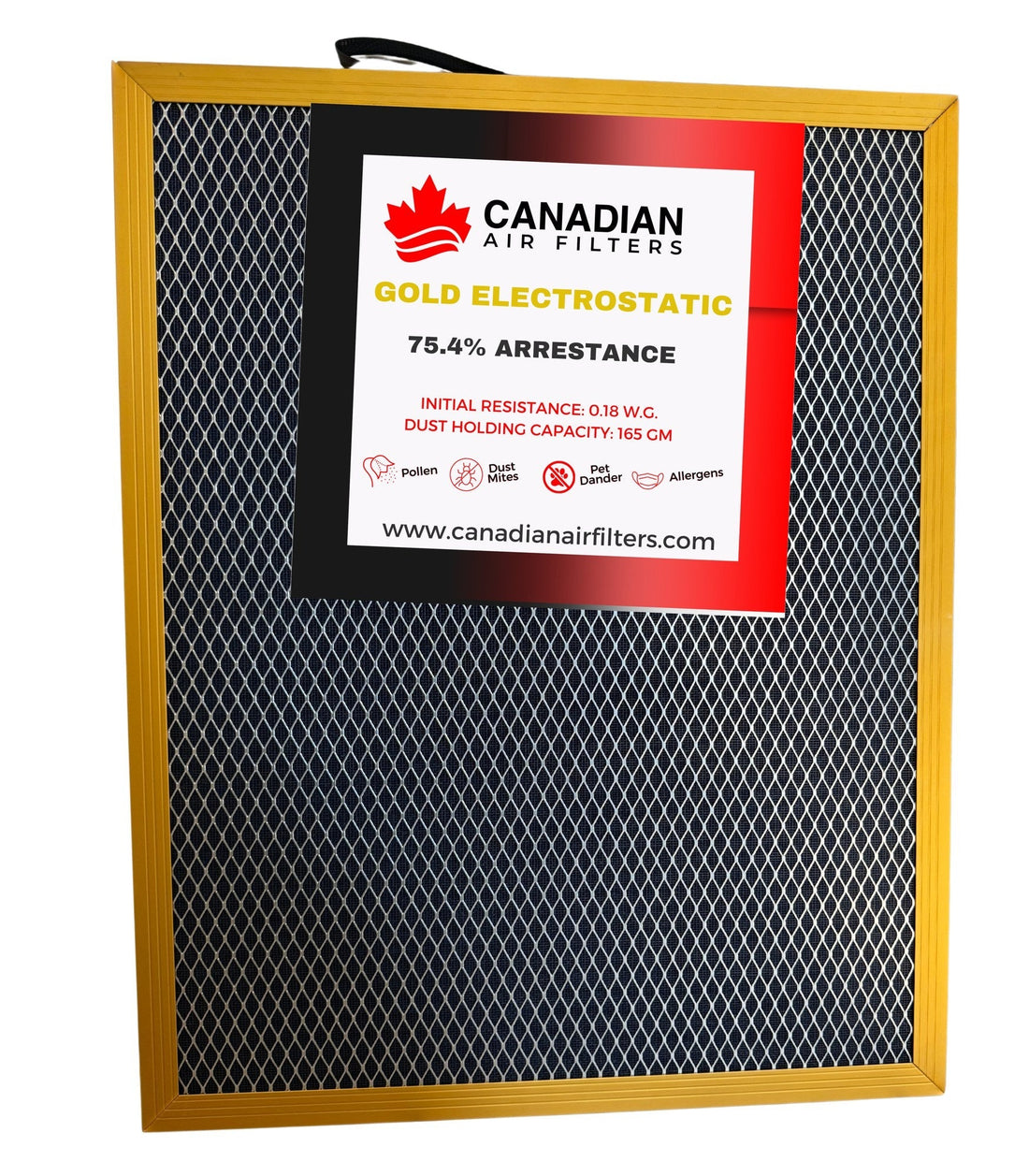

Gold-coloured electrostatic washable air filter with a metal frame

Electrostatic Air Filters: How They Work

8 min read · Filter Types

An electrostatic air filter is a passive (unpowered) air filter whose synthetic fibres carry a static electrical charge that attracts and holds airborne particles, in addition to trapping them mechanically. No wiring, power supply or ionizer is involved: the charge is either generated by air rubbing across dissimilar plastic layers or built into the fibres during manufacturing.

The term covers two quite different products. The first is the washable electrostatic panel – layers of polypropylene or polyester mesh in a metal frame, marketed as a permanent furnace filter. The second is the disposable charged-media filter, where pleated synthetic media is given an electrostatic charge at the factory to boost efficiency without adding resistance. Understanding the difference matters, because their real-world performance, maintenance and cost of ownership are not the same.

Quick facts

Typical efficiency Washable panels: roughly MERV 4–8 when tested; charged pleated media: MERV 8–13
Common depths/sizes 1" most common; some 2" and 4"; standard nominal furnace sizes
Typical applications Residential furnaces and air handlers, light commercial rooftop units, fan coils
Media Polypropylene and polyester mesh or foam; electret-charged synthetic pleated media
Typical replacement interval Washable: clean every 1–3 months, replace frame every few years; disposable: 1–3 months (1")
Relative cost Washable: higher upfront, low ongoing; charged pleated: similar to standard pleated
Reusable? Washable panels yes; charged pleated no
Best paired with A carbon or MERV 13 pleated filter when odours or wildfire smoke are a concern

In this article:

How electrostatic filtration works

All fibrous filters capture particles through three mechanical mechanisms. Impaction catches larger particles (pollen, lint) that cannot follow the air as it bends around a fibre. Interception catches mid-sized particles that drift close enough to touch a fibre. Diffusion captures the very smallest particles, which bounce randomly (Brownian motion) until they hit a fibre. Between these mechanisms sits a weak spot – roughly 0.1 to 0.5 microns – where particles are too small to impact and too large to diffuse effectively.

Electrostatic attraction fills in that weak spot. A charged fibre exerts a force on nearby particles, pulling them in from a wider path than the fibre's physical diameter. Charged particles are attracted directly, and even neutral particles become polarized near the field and are drawn in. The result is higher capture of fine particles without needing tightly packed fibres – which is why charged media can reach a given efficiency at lower airflow resistance than uncharged media.

Triboelectric vs electret charge

There are two ways the charge is created, and they behave differently over the life of the filter.

  • Triboelectric (self-charging): washable electrostatic panels stack layers of different plastics, such as polypropylene and polyester. As air moves through, friction between air and dissimilar materials builds a modest static charge. The charge depends on airflow and is reduced by humidity.
  • Electret (factory-charged): synthetic media is charged during manufacturing, for example by corona charging, leaving a quasi-permanent charge in the fibres. Most modern synthetic pleated furnace filters rated MERV 11 and 13 rely partly on this effect.

Neither type needs electricity, which separates them from electronic air cleaners that use a powered high-voltage section.

Charge decay, humidity and real-world efficiency

The main weakness of electrostatic filtration is that the charge does not last forever. As fine particles coat the fibres, they shield the charge; exposure to oily aerosols such as cooking fumes or combustion soot accelerates this. Very high humidity can also reduce the effectiveness of triboelectric charge. This is why ASHRAE 52.2 includes an optional conditioning step (Appendix J) that discharges or loads the media before testing; a filter rated MERV-A under that appendix shows its efficiency after the charge has been neutralized.

In practice, a charged pleated filter's fine-particle efficiency typically drops somewhat during its first weeks in service, then the growing dust cake partly compensates by adding mechanical capture. For washable panels, efficiency on fine particles is modest from the start. Canadian homes add a seasonal twist: indoor air is very dry through the heating season, which favours static charge, while humid summer air-conditioning months are less favourable.

Construction and materials

A typical washable electrostatic panel uses an aluminum or galvanized frame holding several layers: an outer polypropylene mesh, an inner polypropylene or polyester mesh or open-cell foam, and sometimes a support grid. Thickness is usually 1 inch. The gold-coloured mesh products often sold as "gold series" filters follow this construction.

Charged disposable filters look like any other pleated air filter: synthetic or synthetic-blend media pleated and bonded to a beverage-board or moisture-resistant frame with a wire or expanded-metal backing. The charge itself is invisible, so the MERV rating on the frame is the only reliable indicator of performance.

Washable permanent air filter with layered mesh media in a metal frame

Efficiency ratings compared

Marketing for washable electrostatic panels often claims hospital-grade capture, but few publish a full ASHRAE 52.2 test report. When they are tested, most fall in the MERV 4–8 range. Ask for the MERV number and the test basis before relying on any efficiency claim.

Filter Typical MERV Fine particles (0.3–1 µm) Pressure drop Reusable
Fibreglass throwaway 1–4 Negligible Very low No
Washable electrostatic panel 4–8 Low Low to moderate, rises quickly as it loads Yes
Charged synthetic pleated, 1" 8–13 Some to 50%+ (MERV 13) Low to moderate No
Deep media 4"–5" pleated 11–16 Moderate to high Low (large media area) No

For background on the test, see our Complete MERV Rating Guide.

Pressure drop, airflow and energy

Charged media can deliver efficiency with an open fibre structure, so a clean electrostatic pleated filter usually has a pressure drop similar to an uncharged filter one or two MERV grades lower. Washable panels start with low resistance, but because the mesh layers load from the front and are cleaned infrequently, resistance can climb sharply between washes. A loaded filter makes the blower work harder; with a PSC motor, airflow drops, while an ECM motor ramps up to compensate and uses more electricity. Either way, coils and heat exchangers run outside their design airflow. Clean or replace on schedule and check that the filter is not bowing in its rack.

Applications and Canadian context

  • Residential furnaces and air handlers: the most common use. A charged MERV 8–11 pleated filter is the practical default for most Canadian homes through the long heating season.
  • Cottages and rental units: washable panels appeal where filter deliveries are inconvenient, provided someone actually cleans them.
  • Fan coils and PTACs: small washable electrostatic pads are common in condo fan coils and hotel units.
  • Light commercial rooftop units: charged pleated media is often used as a final filter in smaller RTUs; washable panels are less common because maintenance labour outweighs media savings.
  • Wildfire smoke: washable panels are not well suited to smoke, which is mostly sub-micron particles. During smoke events, switch to MERV 13 media; see the Wildfire Smoke Survival Guide.

Cleaning, maintenance and replacement

For a washable electrostatic panel:

  1. Turn off the furnace or air handler before removing the filter.
  2. Vacuum loose dust from the entering-air side.
  3. Rinse with lukewarm water from the leaving-air side so dirt is pushed back out the way it came in; a mild dish soap helps with greasy residue.
  4. Let it drain and dry completely before reinstalling. A damp filter can promote mould growth and will load faster.
  5. Reinstall with the airflow arrow pointing toward the blower.

Inspect the mesh and frame each time; torn mesh, crushed layers or gaps at the frame mean it is time to replace the panel. For charged disposable filters, follow the usual interval: 1–3 months for 1-inch, longer for deep media, and more often in homes with pets or renovation dust. Our filter changing guide covers schedules in detail.

Buying checklist

  • Confirm the actual dimensions, not just the nominal size, and that the filter seals in the rack with no bypass gaps.
  • Ask for a MERV rating tested to ASHRAE 52.2; treat unrated efficiency claims with caution.
  • Decide honestly whether the filter will be washed on schedule. If not, a disposable charged pleated filter is the better choice.
  • Match the MERV to your goals: MERV 8 for equipment and general dust, MERV 11 for pets and allergies, MERV 13 for smoke and fine particles.
  • Add activated carbon if odour or gases are the main complaint – static charge does not capture gases.

Pros and cons

Advantages Limitations
✓ No power or wiring needed ✗ Charge fades as media loads
✓ Charge boosts fine-particle capture at low resistance ✗ Washable panels usually rate only MERV 4–8
✓ Washable panels reduce disposable waste ✗ Cleaning is easy to forget
✓ Fits standard furnace filter racks ✗ Wet or poorly dried panels can harbour mould
✓ Charged pleated versions widely available in MERV 8–13 ✗ Higher upfront cost for permanent panels
✓ Low noise and no ozone ✗ Does not remove odours or gases

Shop at Canadian Air Filters

Clean Air Gold Series · Washable filters · MERV 11 pleated filters · MERV 13 pleated filters

Made in Brampton, Ontario and shipped across Canada. Need a size you can't find? Request a custom filter or ask about bulk pricing.

Frequently asked questions

Are electrostatic air filters better than pleated filters?

Not automatically. Most modern synthetic pleated filters are already electrostatically charged, so the comparison is really washable panel versus disposable pleated. A disposable charged MERV 11 or 13 pleated filter generally captures more fine particles than a washable electrostatic panel.

Do electrostatic filters produce ozone?

No. Passive electrostatic filters have no power supply and create no ozone. Ozone is a concern with some powered devices such as ionizers and certain electronic air cleaners.

How often should I wash a washable electrostatic filter?

Check it monthly and wash it every one to three months, more often during heavy heating or cooling use or with pets. Always let it dry fully before reinstalling.

Can an electrostatic filter restrict airflow?

A clean one usually has modest resistance, but a heavily loaded washable panel can restrict airflow significantly. Signs include weak airflow at the registers, whistling at the filter rack or longer run times.

Do electrostatic filters help with wildfire smoke?

Washable panels are not effective enough for smoke, which is dominated by very fine particles. A MERV 13 filter, run with the fan on continuously during smoke events, is a better choice.

What is a MERV-A rating?

It is a MERV rating obtained after the optional ASHRAE 52.2 Appendix J conditioning step, which removes the benefit of electrostatic charge. It shows how the filter performs once the charge has decayed.
